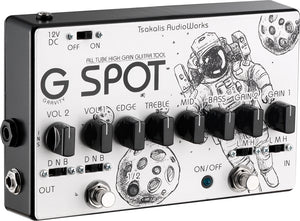

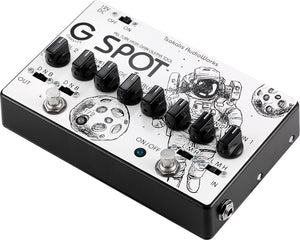

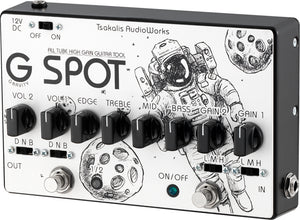

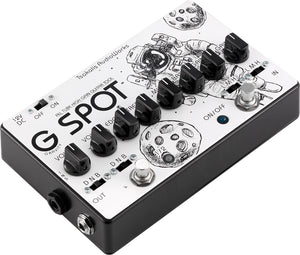

Gravity-Spot is a must have“All Tube”High Gain Tool for every demanding Guitar player. This pedal can provide a natural feel and sound, from “Classic Rock sounds” to “hard overdriven Riffs” and “endless sustain Solos”.
Gravity-Spot is a 100% handmade pedal and all components are carefully selected and crafted. It is armed with 2xECC83s tubes in cascade mode running at very high voltages providing big headroom, physical compression and sensitive touch, so every note you hit has an unbelievablemagic!!!
2 separate channels with independent Gain and Volume controls, sharing a 4 control eq, are capable for delivering many many configurations on stage and recording.
Each channel has 3 modes for Gain: Low – Mid – High and 3 modes for Voicing: Deep – Normal – Bright. The eq is a standard British configuration with Bass – Middle – Treble & Edge controls. With the Edge control you can manage the whole tonality of the pedal to your tastes.
Internal trimmer for high voltage micro-adjustment. With this adjustment you go from “Brown sounds” to “modern” bright styles.
Tube Amp Style Hand Wiring (TASHW)
2 Channels all Tube Overdrive pedal
2xECC83s Tubes in cascade mode, running at 230Volts
1 Volume & 1 Gain control for each channel
4 controls British Style eq, with Bass, Mid, Treble & Edge
3 position Gain mode slide switch for each channel (Low-Mid-High)
3 position Voice mode slide switch for each channel (Dark-Normal-Bright)
1 Heavy Duty Footswitch for enable / disable the pedal
1 Heavy Duty Footswitch for selecting between channel 1 (green) / channel 2 (red)
Internal trimmer for high voltage micro-adjusting
Power Supply : 12V DC / 800mA (no polarity), external wall power pack included in the package
Heavy duty & light weight aluminum box
Dimensions : 195mm(Width) x 123mm(Length) x 55mm(Height)
