NUX B-8 Guitar Wireless System

PREOWNED

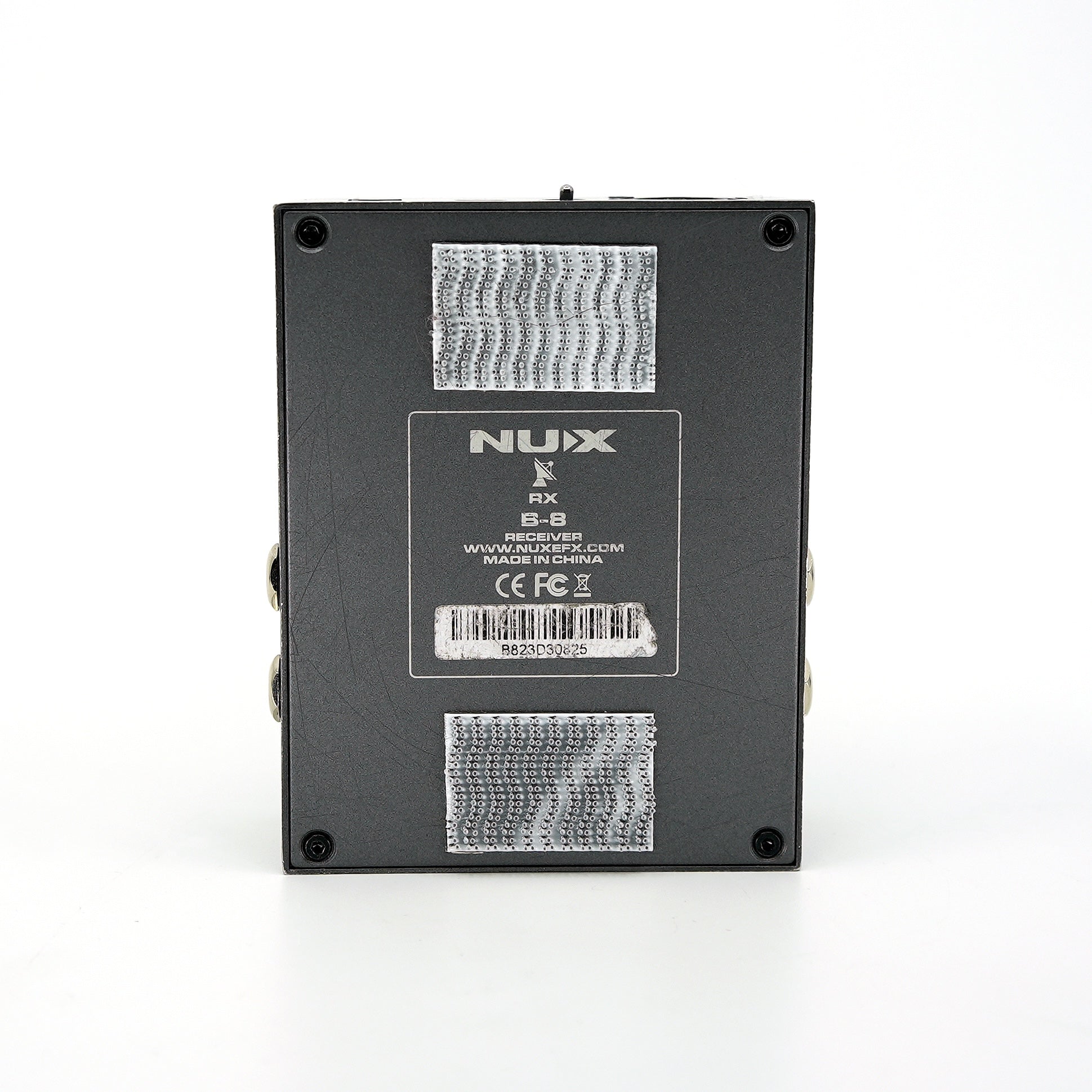

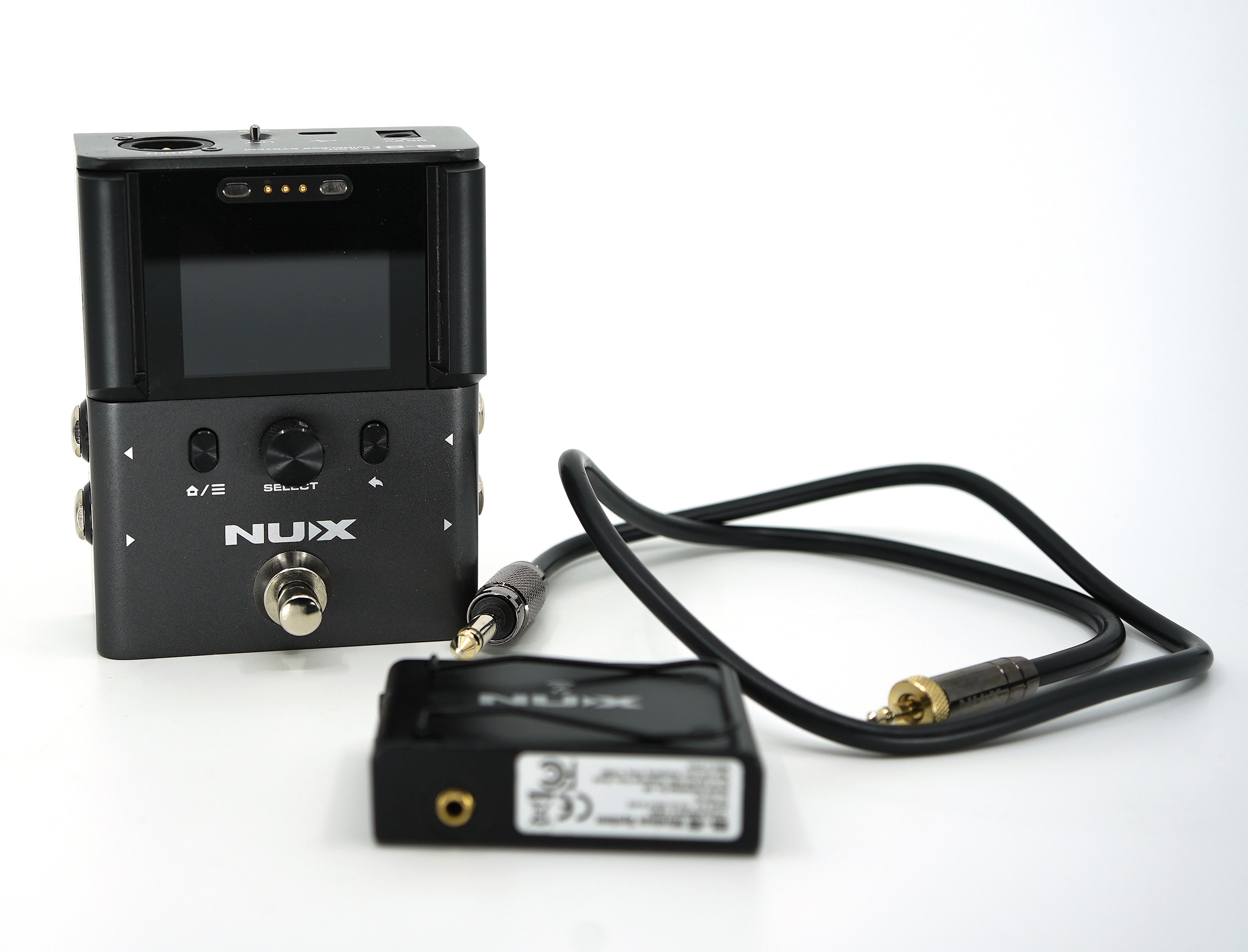

Very good condition. Full set with transmitter and receiver. Receiver has Velcro on the back, ready to mount on a pedalboard.

The B-8 Guitar Wireless System is a professional-grade solution in NUX’s Pro Series. Built on our third-generation platform, it combines anti-interference tech, intelligent frequency hopping, 1MHz narrowband transmission, Audio Zip/Unzip, six stability levels, and a true-diversity dual-antenna design for rock-solid, reliable signal. The latest firmware further improves wireless performance with better transmission efficiency and stronger interference resistance.

Designed for guitars, basses, and any instrument with a 1/4″ output, the system pairs a beltpack transmitter with a multifunction pedal receiver. It operates at 2.4 GHz, supports auto-pairing, delivers 24-bit/48 kHz audio, achieves latency down to 2.5 ms, and reaches up to 165 ft (50 m) line-of-sight. The transmitter’s built-in lithium battery provides up to 6.5 hours of runtime! Enough for rehearsals, sessions, and gigs.

Intelligent Frequency Hopping

While in use, the B-8 automatically scans the 2.4GHz band and switches to the cleaner channel when interference is detected, ensuring a stable connection and clear audio throughout your performance.

1MHz Narrowband Transmission For Improved Spectrum Efficiency

The B-8 system reduces the channel bandwidth from 2MHz to 1MHz, significantly improving the utilization of the 2.4GHz frequency band and expanding the number of available channels to up to 79. This gives the intelligent frequency hopping technology more channel options to effectively avoid interference from Wi-Fi and other wireless devices. In environments with a high density of wireless equipment, this ensures more stable and reliable signal transmission.

For multiple guitarists in the band, a maximum of 10 B-8 units can be used simultaneously to maintain optimal wireless performance and stability.

6-Level Stability And Audio Zip/Unzip

The B-8 offers 6 levels of stability (2.5ms–8.7ms). Higher stability levels increase the number of signal transmissions, with up to 12 transmissions every 8.7ms. (Since interference is time-varying, more frequent transmissions can help avoid interference issues.)

It uses Audio Zip/Unzip technology with 24-bit/48kHz quality to ensure clear and stable sound, working in combination with 6-level stability settings. The 1MHz Zip technology enhances anti-interference performance — “like a motorcycle (1MHz) navigating around traffic along a crowded highway (2.4GHz~2.483GHz) more smoothly than a truck (4MHz).” The Unzip technology preserves high-resolution sound quality without any compromise.

A True Diversity Dual Antenna

Two antennas on both transmitter and receiver are used to automatically pick the strongest signal, preventing dropouts and dead spots. With frequency hopping, 1MHz narrowband, and 6-level stability settings, it stable operating range up to 165 ft (50 meters) for smooth, reliable audio.

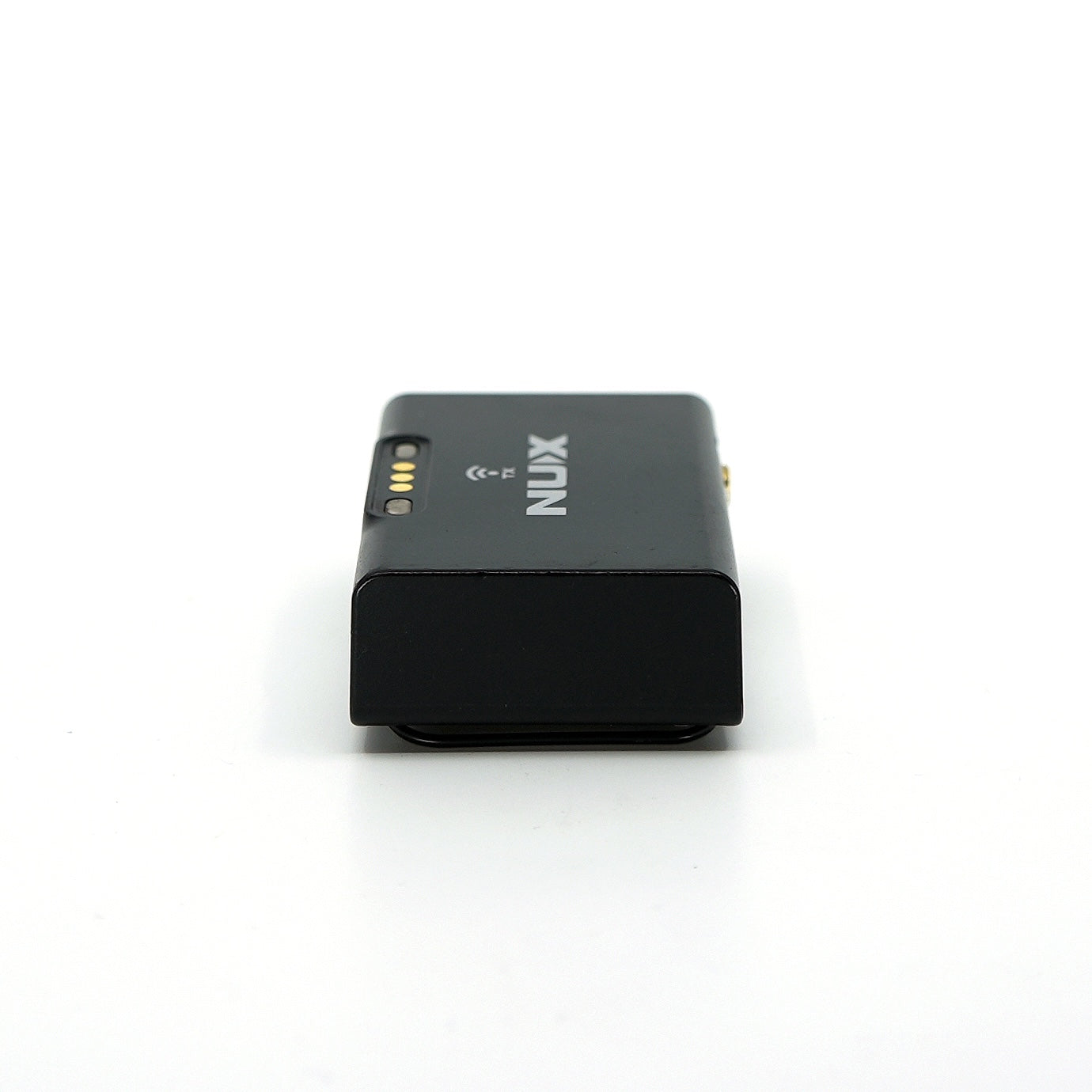

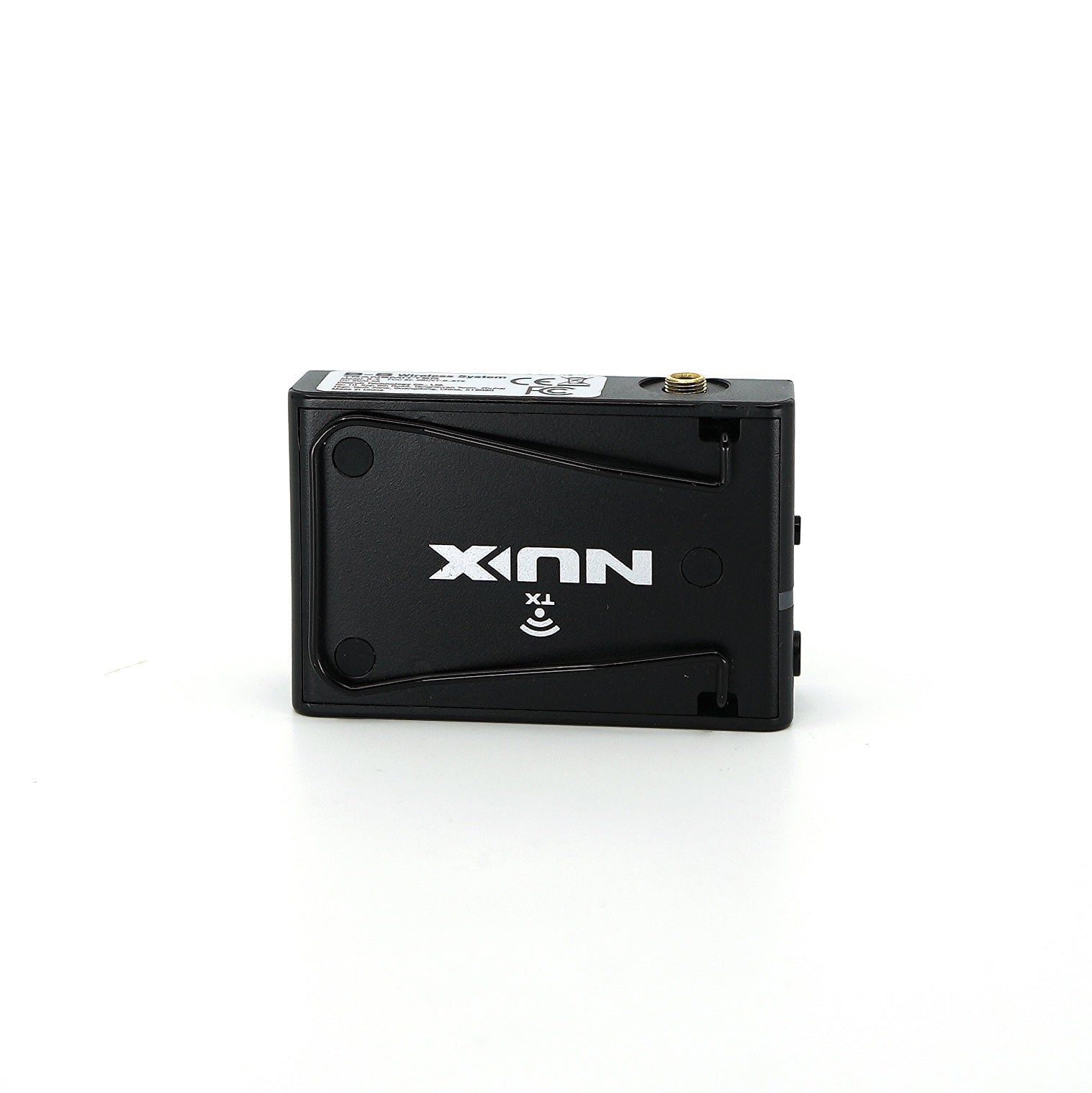

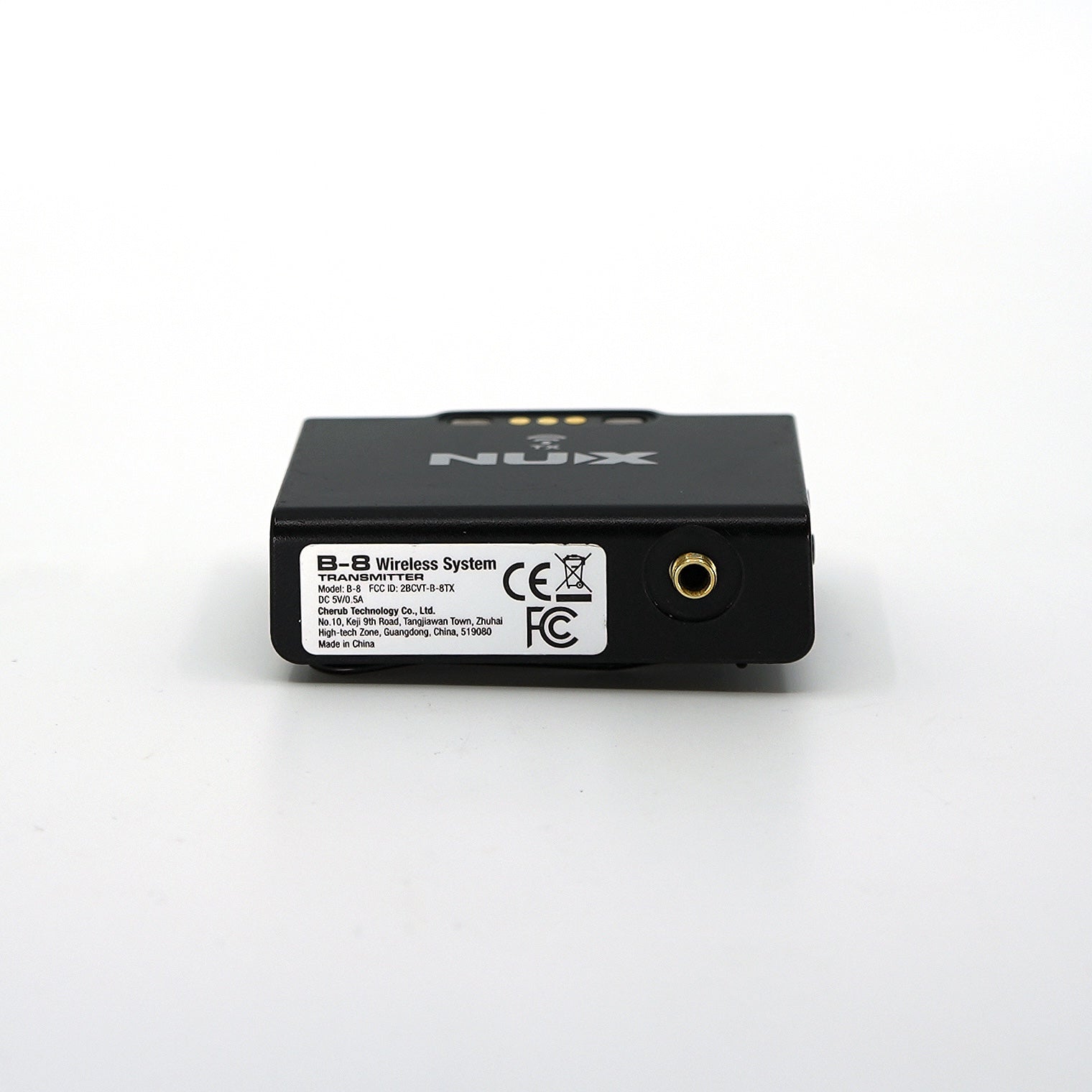

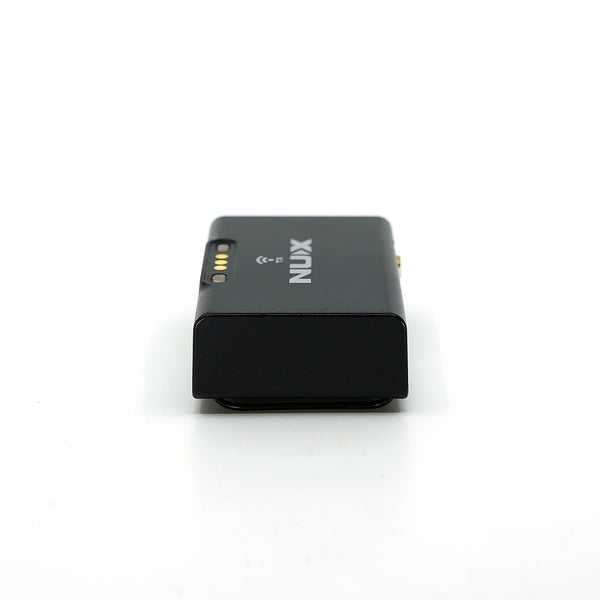

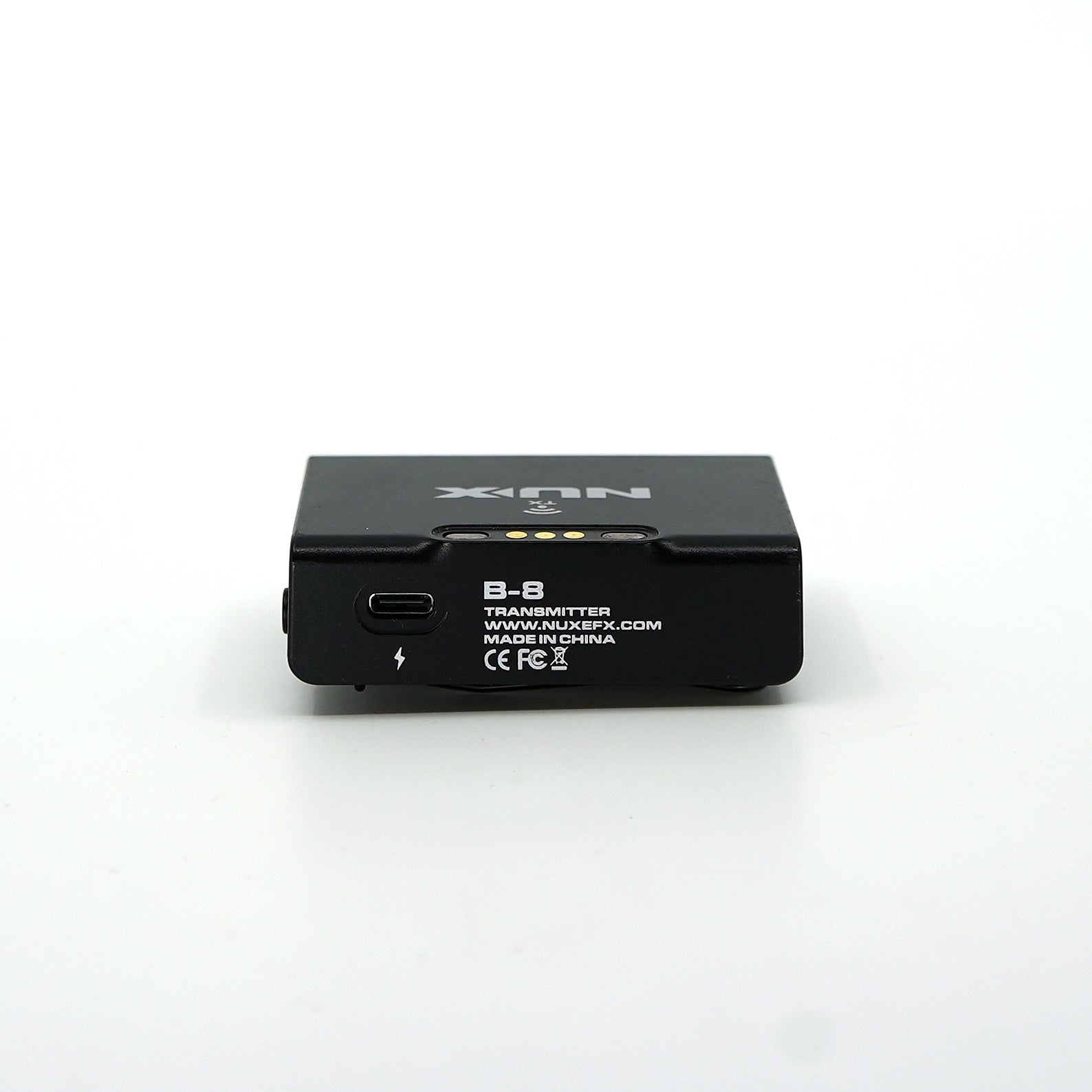

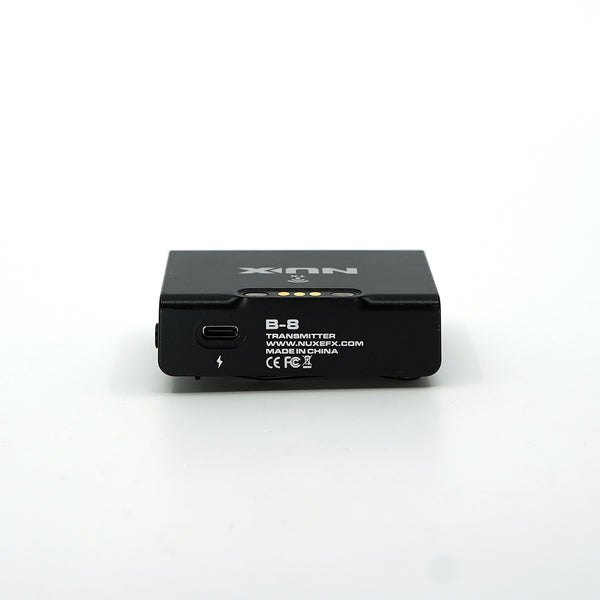

Beltpack Transmitter

The compact beltpack clips easily to a strap or pocket. Its jack design prevents rotation and loosening—keeping the plug secure even during energetic movement. B-8 fits electric and electro-acoustic guitars, basses, and other instruments with pickups.

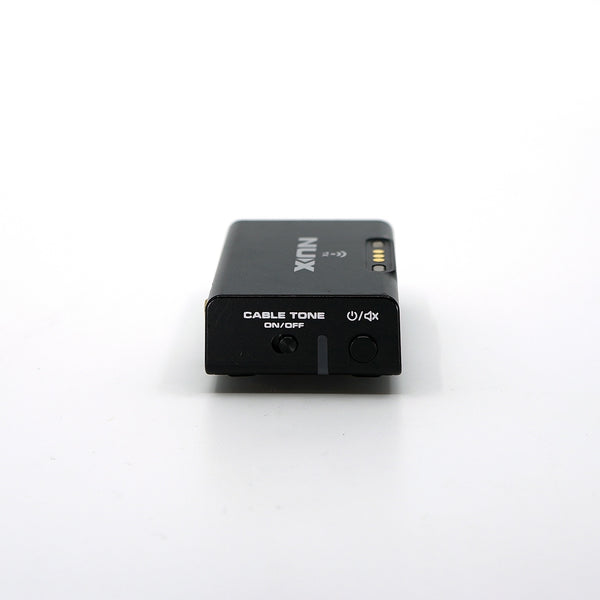

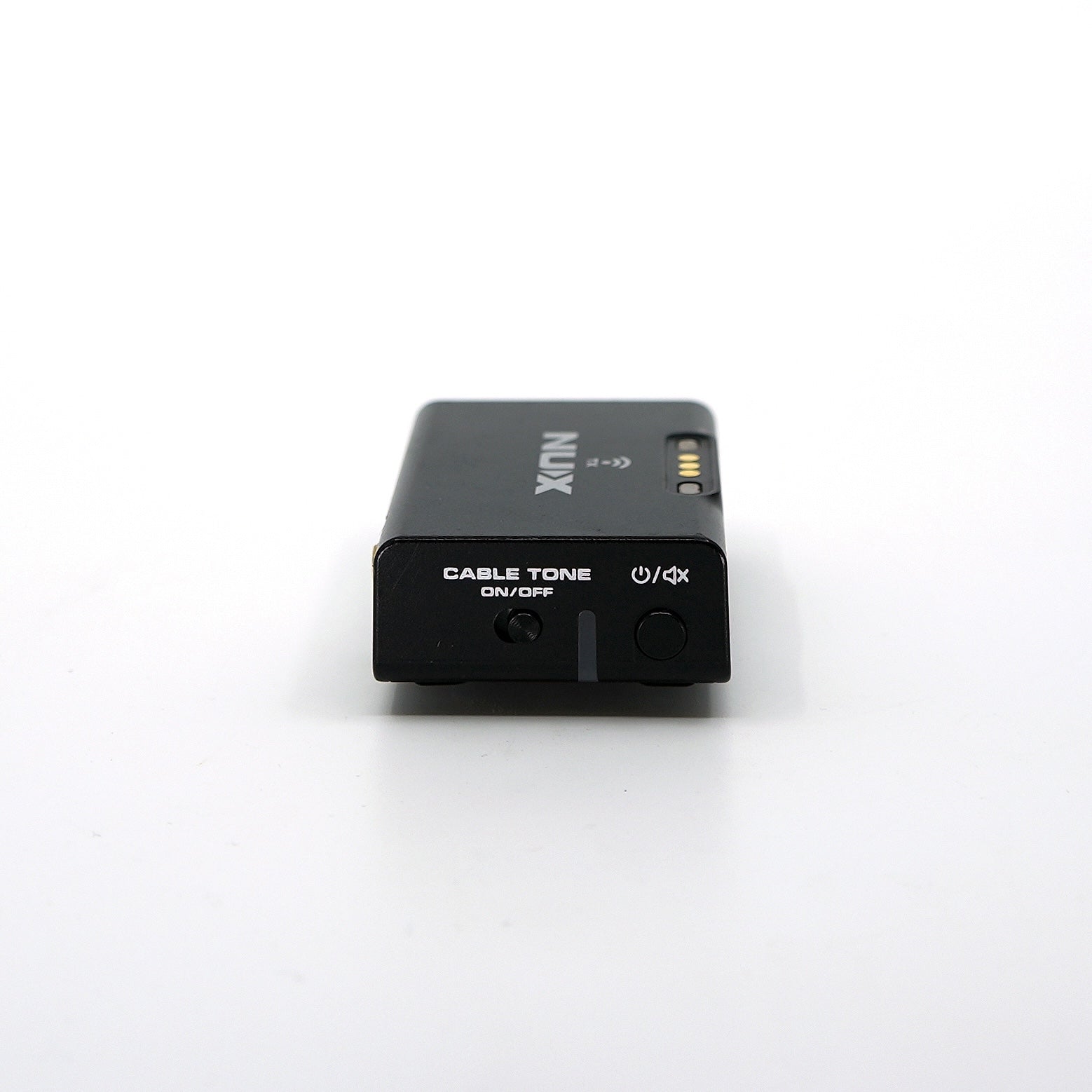

Cable Tone

The TX features a cable tone simulation which is normally used for some guitar players to get a warmer sound. If you want it, you can pull the switch and turn it on.

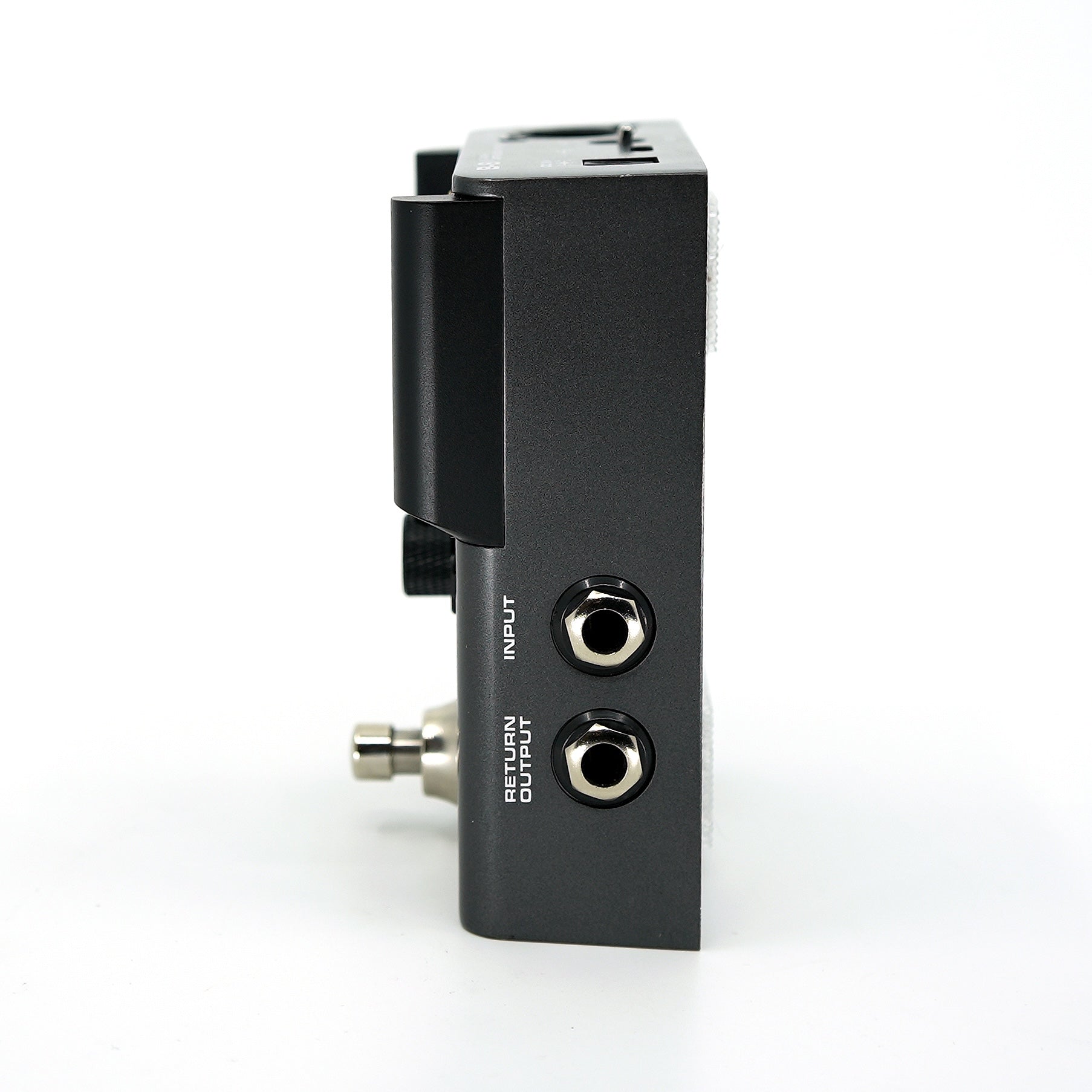

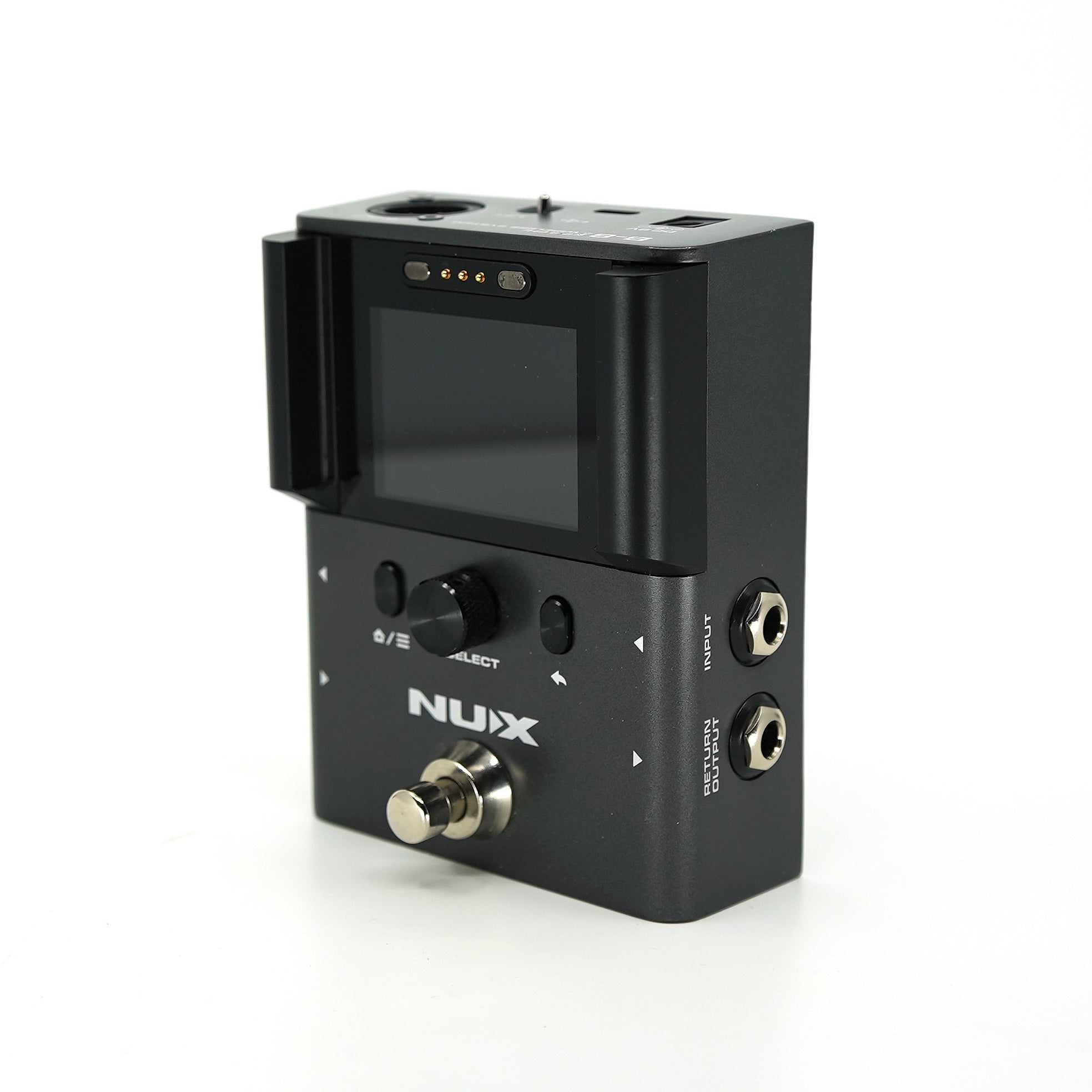

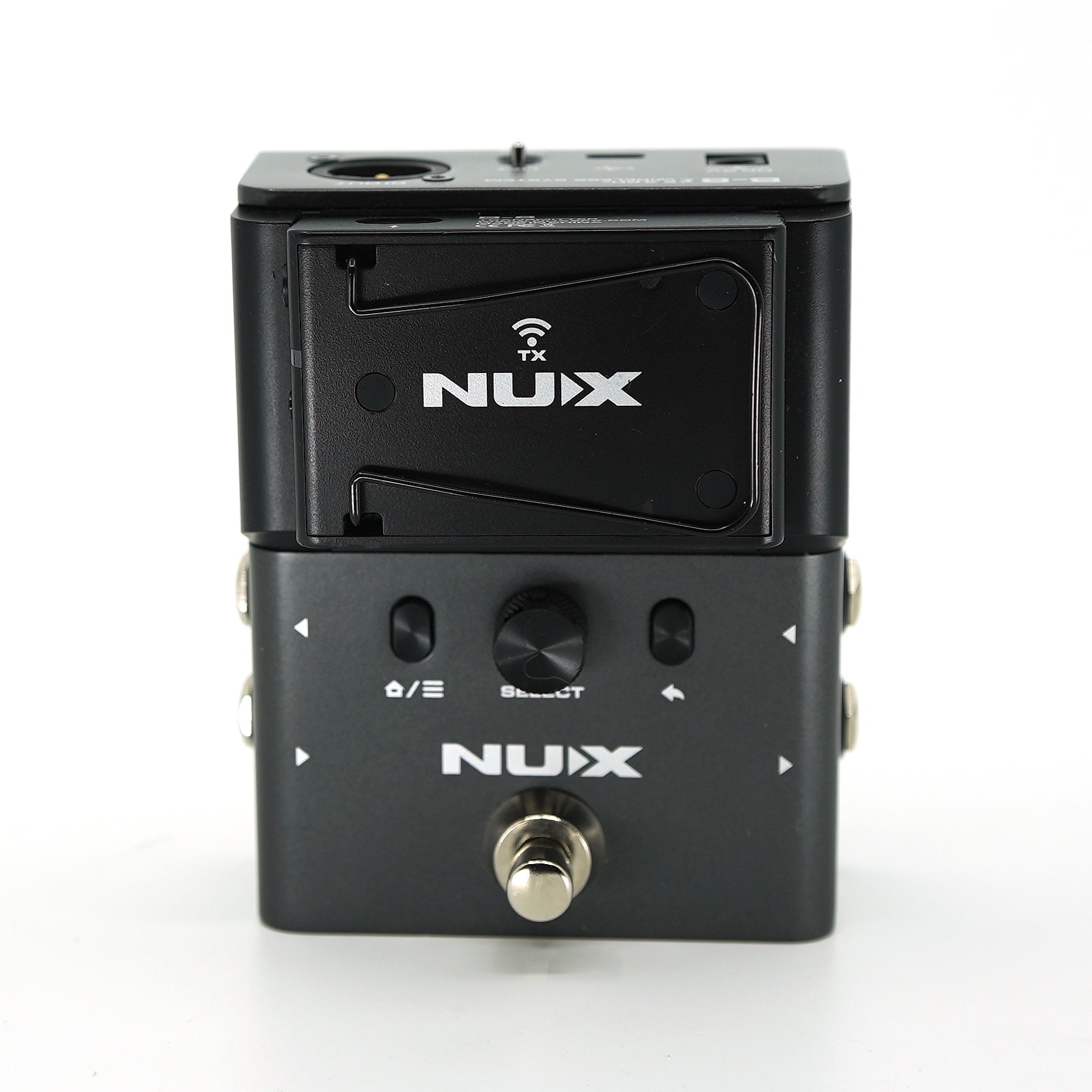

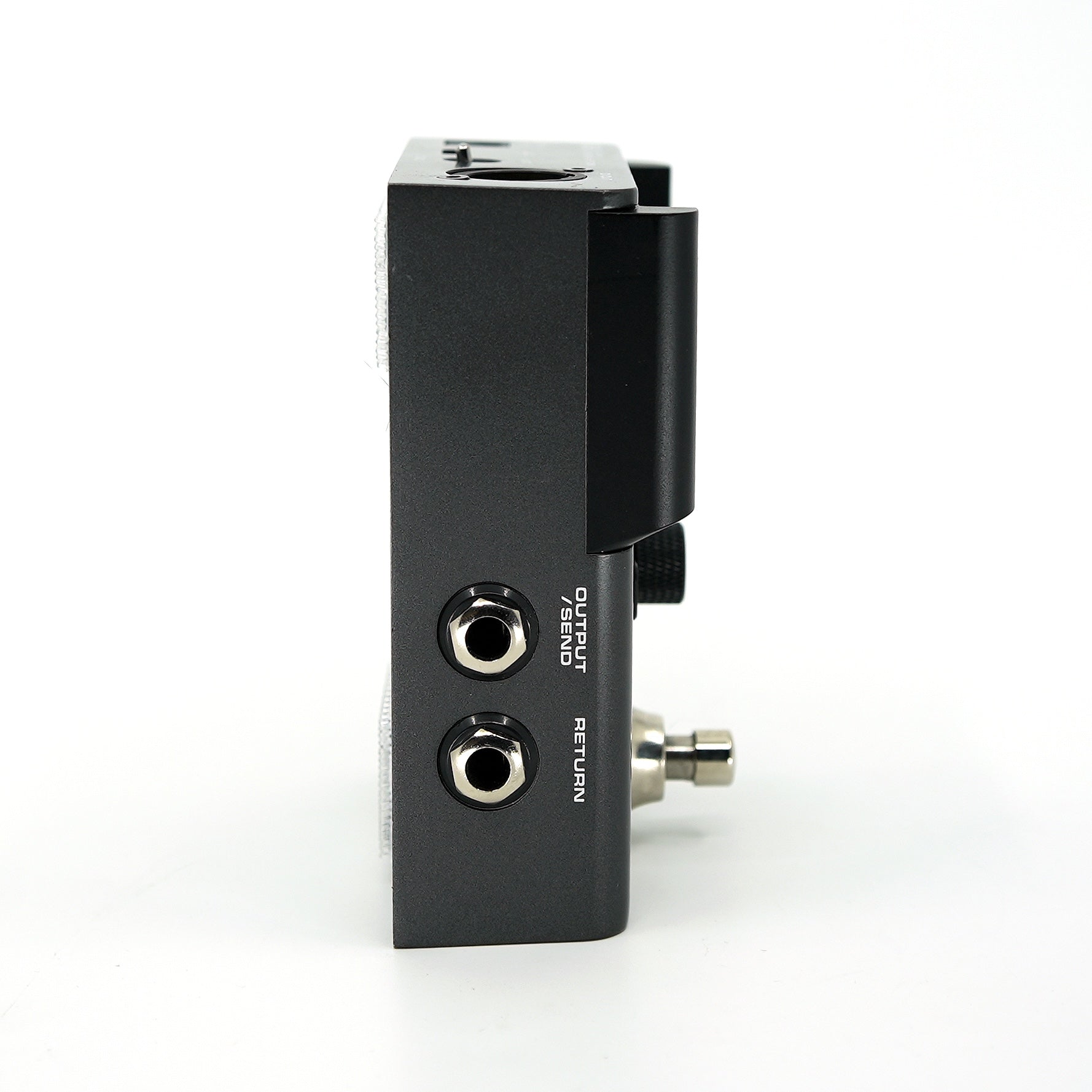

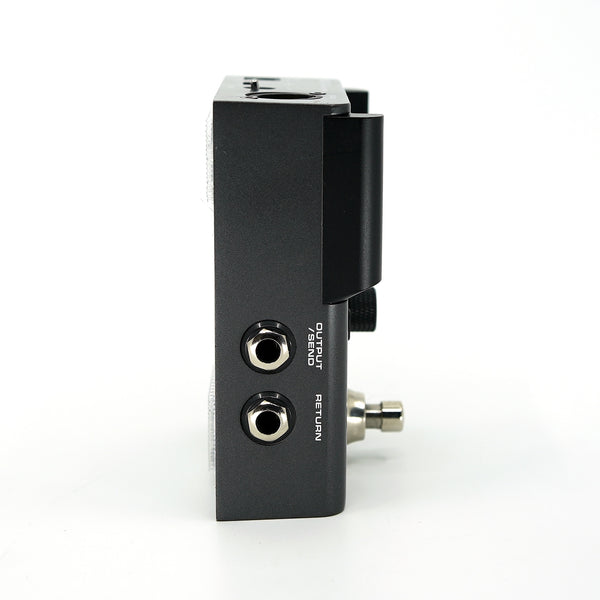

A Multifunction Pedal Receiver

The B-8 combines multiple practical features into one unit, including wireless transmission, tuner, junction box, boost, buffer, DI functions, guitar input and a magnetic charging port for the transmitter. This all-in-one design greatly simplifies stage equipment connection and control, improving live performance efficiency.

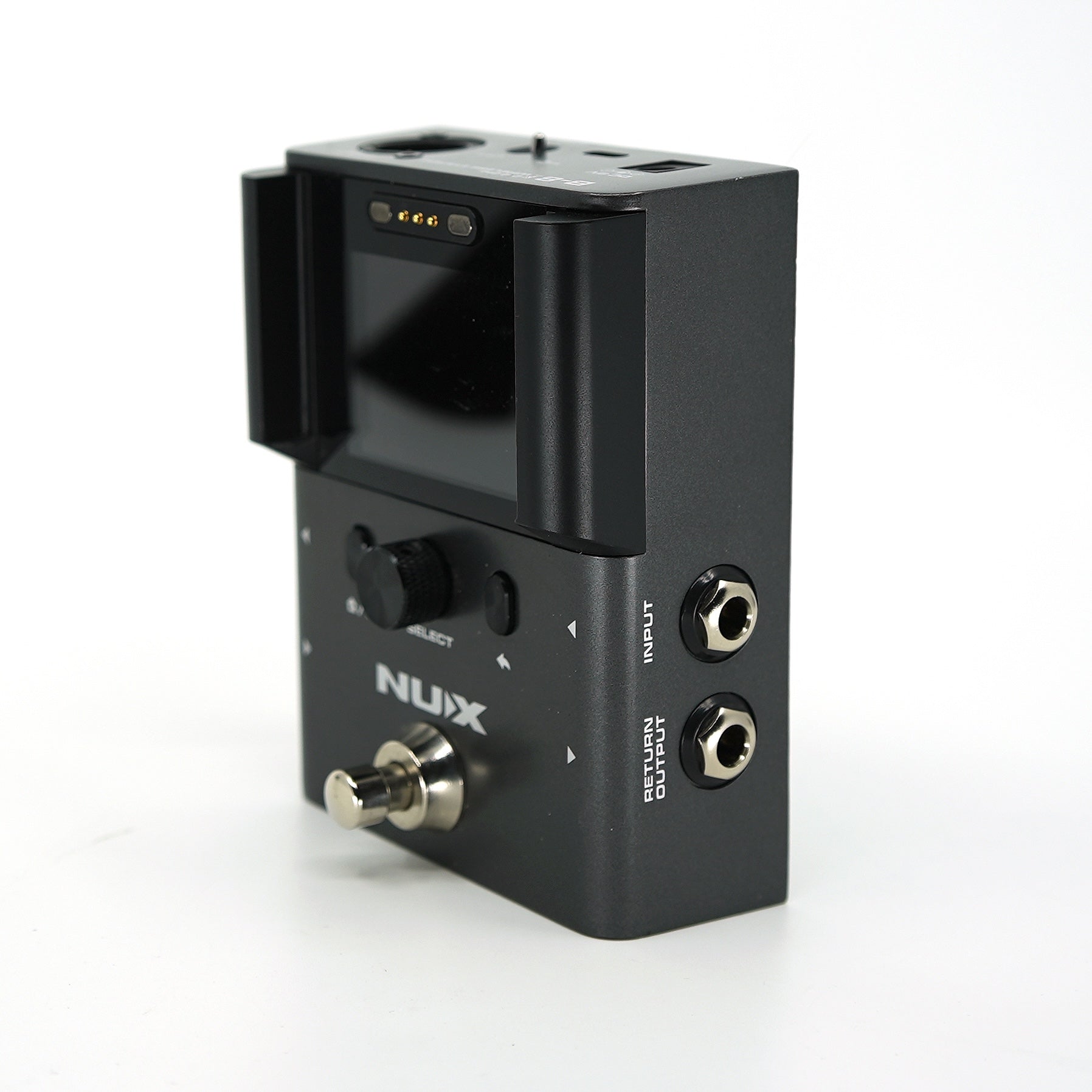

A 2.4-Inch Color Display With Horizontal And Vertical Display

The receiver features a 2.4-inch color screen that shows battery level, input volume, and settings in real time, making monitoring and adjustments quick and easy to improve on-stage efficiency. The screen supports both Horizontal and Vertical display modes to meet different usage needs.
