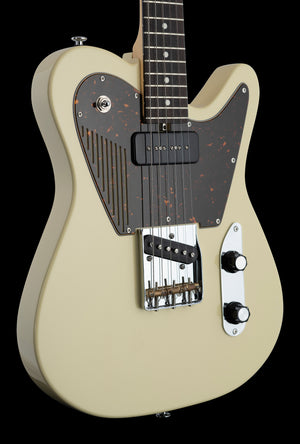

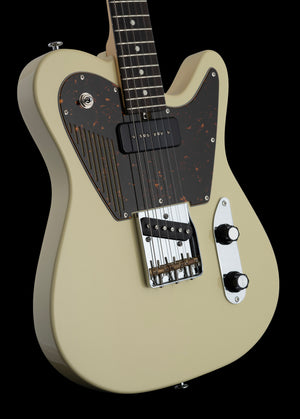

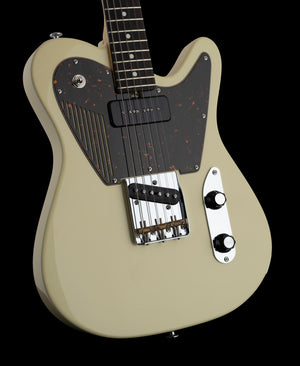

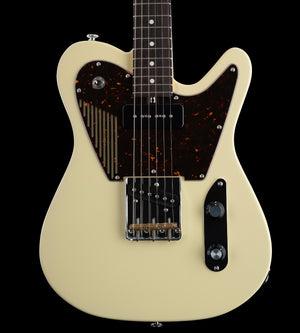

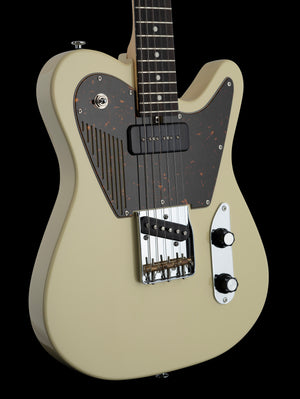

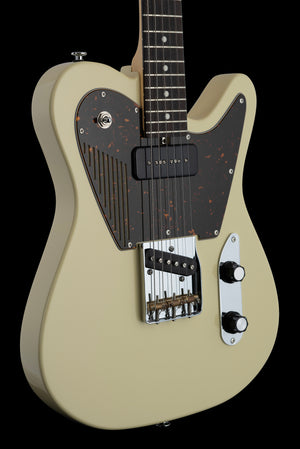

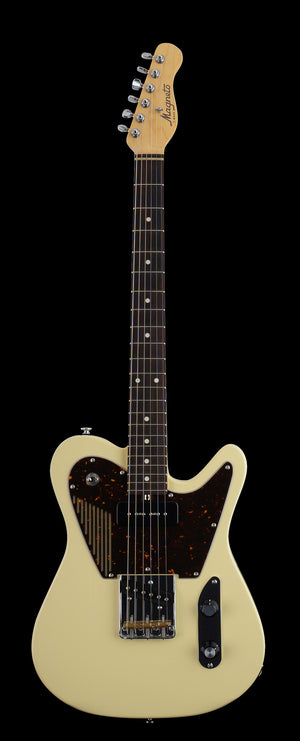

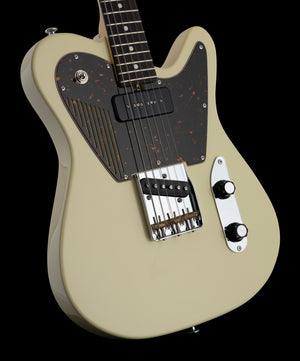

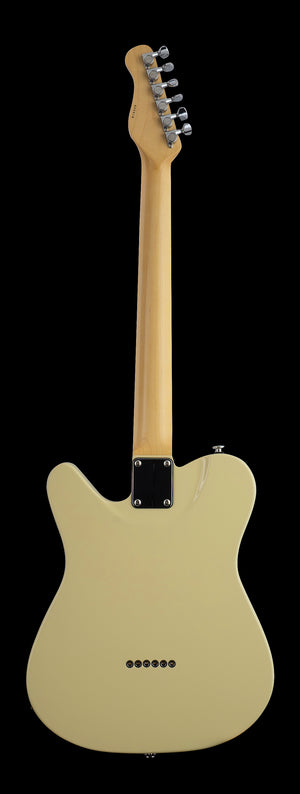

The T-Wave is a tribute to the creators of the magical tones and grooves which set the base for today's popular music.
Following the "Tone-Influent" Shape concept, the T-Wave was designed to cross the boundaries of today's typical 2 pickup guitars.

The combination of a North American Alder body, a Hard Rock Maple neck, and an Indian Rosewood fingerboard builds the base of the T-Wave's rich tone. The Magneto "Tune-O-Flex" bridge was engineered to fit today's playing styles while keeping the classic vibes and tones of a vintage bridge.


SPECIFICATIONS



BODY

Body Wood: American Alder 2-piece

Finish: Nitrocellulose Lacquer

Pickguard: Tortoise

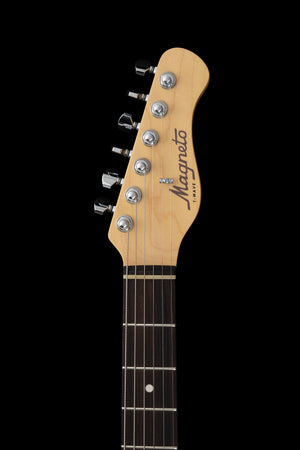

NECK

Neck Wood: Hard Rock Maple

Finish: Satin Nitrocellulose

Fingerboard: East Indian Rosewood

Scale length: 648mm, 25.5”

Nut Material: Oiled Bone

Nut Width: 42mm, 1.650”

Frets: .096” x .047” Narrow Jumbo Style Nickel Frets (6105 Style)

Nr.of Frets: 22 frets

Neck Profile: Medium “C” Shape

Neck Thickness at 1st Fret: 0.85"

Neck Thickness at 12th Fret: 0.94"

Radius: 11” / 280mm Radius

Neck Heel: Tapered

Truss Rod: Single Truss Rod

Truss Rod Nut: "Quick-Set" System



HARDWARE

Bridge: Tune-O-Flex” Bridge w. Intonated Brass Saddles, 10.8 mm String Pitch

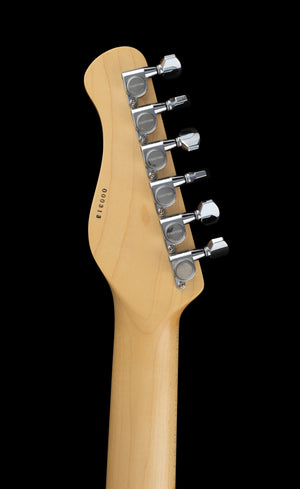

Tuners: Gotoh SG-360-07 Gear Ratio 14:1

String Retainer: “The Cylinder” Low Friction String Guide, made by Gotoh

Hardware Finish: Chrome



ELECTRONIC PARTS

Pickups: Lollar Low Wound P90 Neck, Mojotone Knockout Bridge Pickup

Pickup Switch: 3-Position “Flip Switch”

Switching: Standard 3-way

Controls: 1 Master Volume, 1 Master Tone

Pots: CTS Audio Taper Pots

Output Jack: Switchcraft



Strings: 010-046

Case: Magneto "Mag-Lite" Case

Accessories: Allen Wrench for Bridge Adjustments, Neck Adjustment Pin

Weight: 8.24 lbs
