The LIGHT Pedal combines all the best features of a classic spring reverb with an innovative infrared optical sensor system and a unique effects section. Create countless new types of reverb textures that have never been possible before.
HOW IT WORKS
The LIGHT Pedal is based on a mechanical spring reverb tank.
Incoming audio signal is converted into mechanical vibrations by an input transducer (a spring exciter). A similar transducer is used at the output stage to convert the spring's vibrations back into audio signal. Even a short impulse can cause extended vibrations – this is how the traditional reverb effect is achieved. Plate reverbs use the same principle to excite large, resonant sheets of metal.
However, due to energy dissipation, by the time vibrations travel along the length of the springs and reach the output transducer, most of the harmonic content of the input signal is lost, and the output is mostly composed of the spring’s own resonant frequencies. This is why all spring reverbs have a particular sound.
NOTHING LIKE THE REAL THING
Digital algorithms provide amazing flexibility and limitless sound-shaping capabilities, but they haven’t been able to recreate the warmth and organic quality of analog reverb systems. The LIGHT Pedal's optical sensor technology was developed to extract a wide range of new reverb textures out of a fully analog system. The result is an extensive palette of analog reverb sounds that simply cannot be compared to or emulated by digital algorithms.
UNIQUE FX & GATING ENGINE

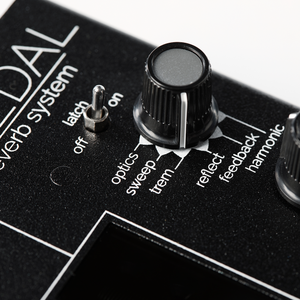

The LIGHT Pedal offers six types of unique reverb effects, which are achieved by modulating the optical sensor system and exciting the spring-tank. Each effect type can be adjusted with the CTRL knob.
The GATE knob controls a built-in dynamic envelope that lets you achieve gated or ducking reverb effects.
BUILT TO BE PLAYED LIVE

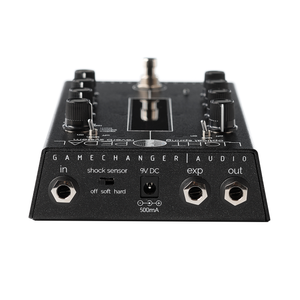

The LIGHT Pedal is a true analog mono reverb system. It features an assignable expression pedal input (normally assigned to the FX control knob), as well as an innovative shock sensor designed to eliminate unwanted spring-noise caused by mechanical impacts, stomping, and stage-rattle.

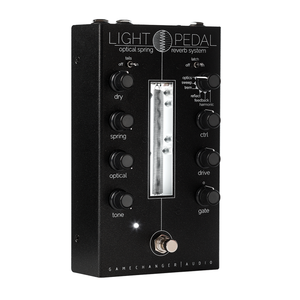

The LIGHT Pedal has three separate volume controls that provide detailed control over the pedal’s output signal.
These set individual levels for both the traditional spring tank output and the optical reverb system. The DRY knob cuts or boosts the instrument’s DRY signal (ranging from zero to roughly a 2x volume boost).
The TONE knob controls a powerful tilt EQ section that is applied to the WET signal only. The TONE knob can be used to produce a massive low-frequency boost or to accentuate only the higher reverb frequencies instead.
