VH4-2 PEDAL
THE LEGENDARY DIEZEL VH4 TONE NOW AVAILABLE IN A TWO CHANNEL PEDAL FORMAT;
The VH4-2 recreates VH4 amp channel’s magical blend of aggression, clarity, and full-throated punch with the authenticity that only Peter Diezel can offer. And like all Diezel Amplification products, inside you’ll find the same commitment to top-tier craftsmanship and the only the finest-quality components. Plug in a VH4-2 and turn your amp into a raging VH4 stack.

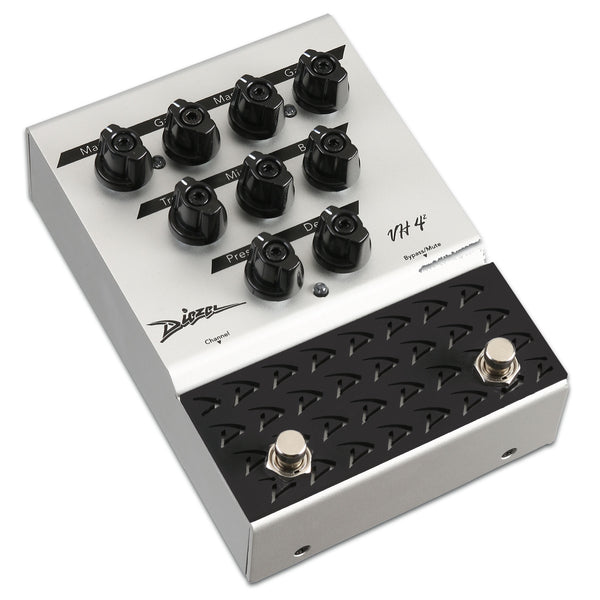

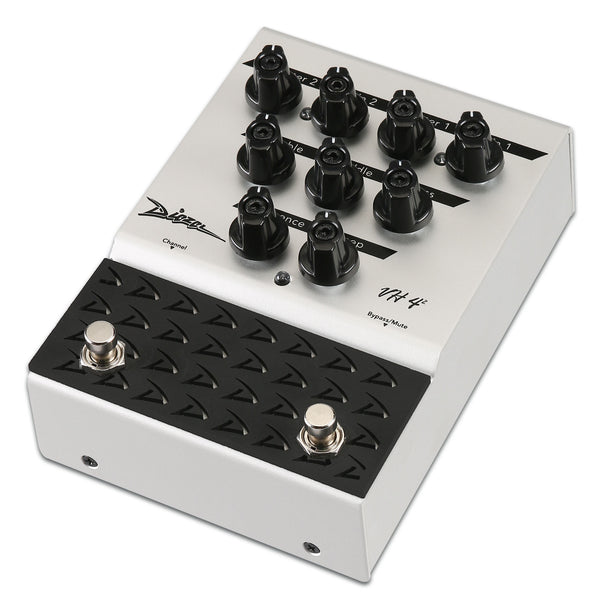

PEDAL CONTROLS
Bass, Middle, Treble: Shapes the EQ and adjusts the overall gain.
Deep: Increases the ultra low frequency content - simulating the DEEP control on the VH4 amplifier.
Presence: Contours the high frequency content - simulating the PRESENCE control on the VH4 amplifier.
Master 1 & 2: Adjusts the overall volume of the pedal. Master 1 for channel 3 of the VH4, and Master 2 for channel 4.
Gain 1 & 2: Adjusts the amount of gain for the pedal. Gain 1 for channel 3 of the VH4, and Gain 2 for channel 4 of the VH4.

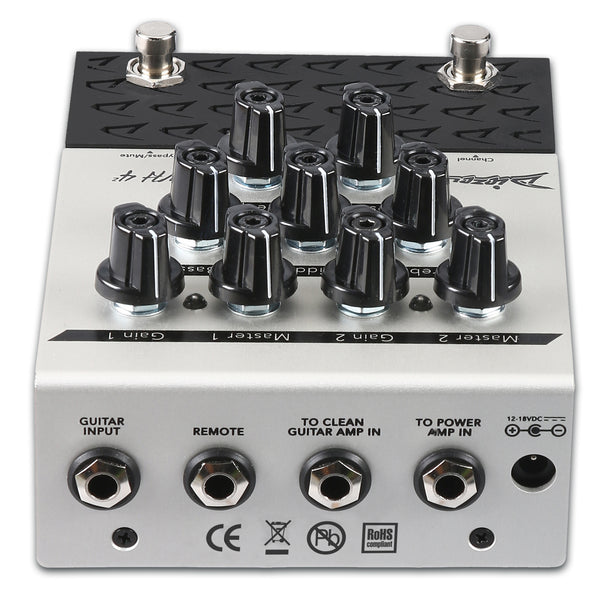

Guitar input: Connect your guitar to this input.
Out to guitar amp: Connect to the front end of your amplifier.
Out to power amp: Connect to rack mount power amplifier or the return jack of your amp’s effects loop.
12-18V Center Negative Included is a universal 12V power supply and 18V splitter cable.
Weight: 1.4 LBS
Dimensions: 4.5" W X 6.5" L X 2" T
