Voodoo Lab Pedal Power HX Current Doubler Cable - 2.5 mm

Voodoo Lab Pedal Power HX Current Doubler Cable - 2.5 mm

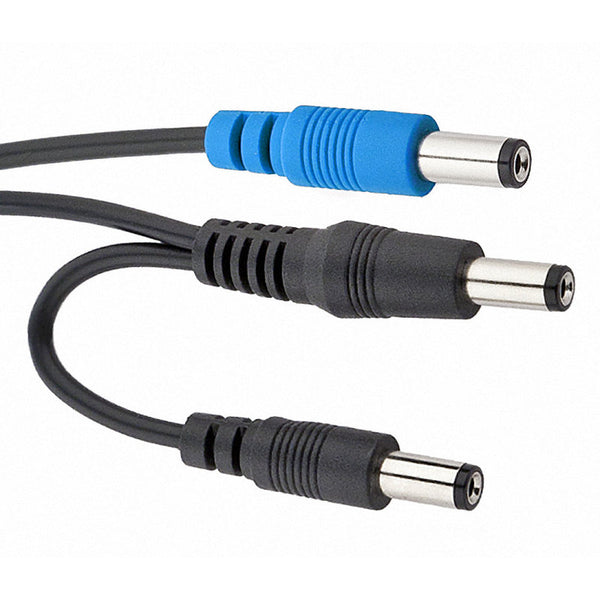

HX CURRENT DOUBLER CABLE – 18″

The HX Current Doubler Cable (PPHX) combines two high current Pedal Power outputs (400mA or greater) to power Line 6 HX Effects, Stomp, or Stomp XL. This cable features two BLACK 2.1mm barrel plugs to a single BLUE 2.5mm plug for use with standard center-negative polarity pedals. Recommended for use with Pedal Power X8, Digital, 4X4, MONDO, or Pedal Power 3 series supplies. Please note that this cable will not combine the voltages of the original outputs. Only the current supply will be combined.


  • Combines two isolated high current Pedal Power outs to power Line 6 HX Effects
  • Also compatible with Line 6 HX Stomp and Stomp XL
  • Custom-designed by Voodoo Lab for optimal performance with Pedal Power
  • Nickel-plated barrel plugs secure solid connections between power supply and effects
  • 22-gauge copper wire for superior current handling
  • Coaxial design allows greater cable flexibility
  • Durable PVC insulation ensures long cable life
  • Part# PPHX
