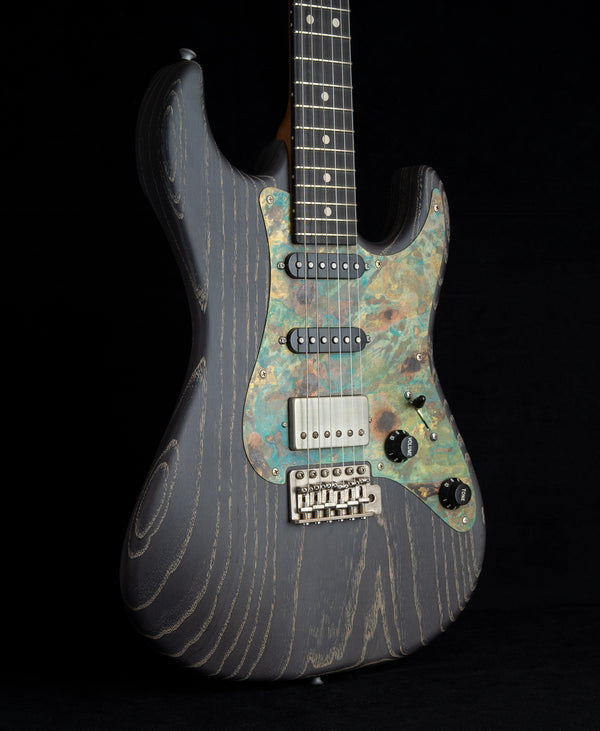

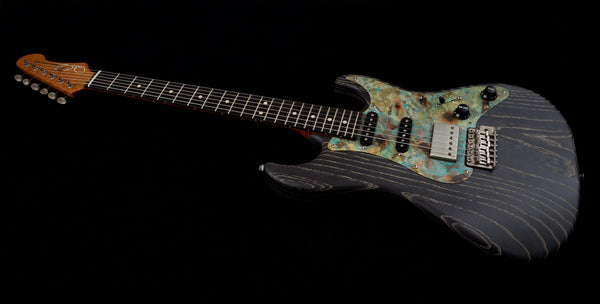

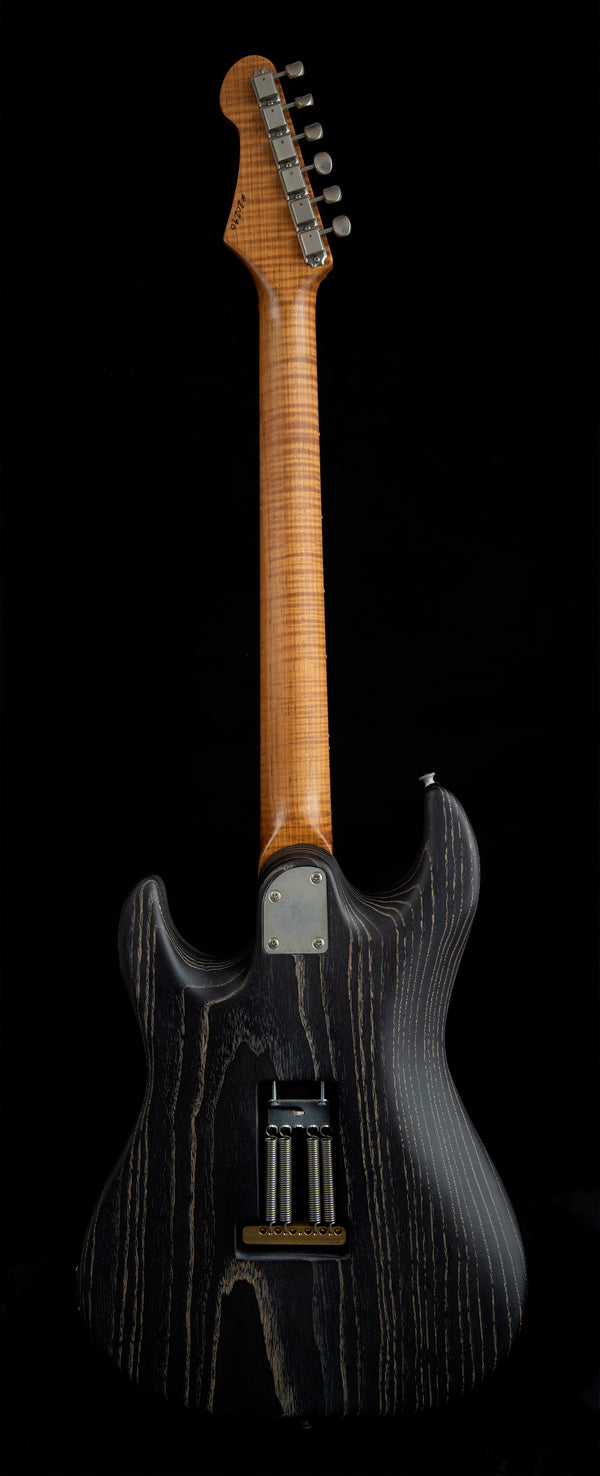

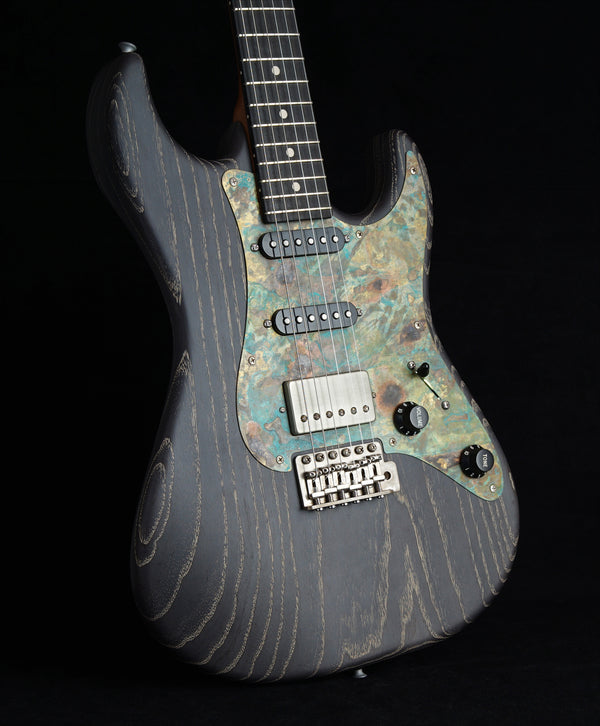

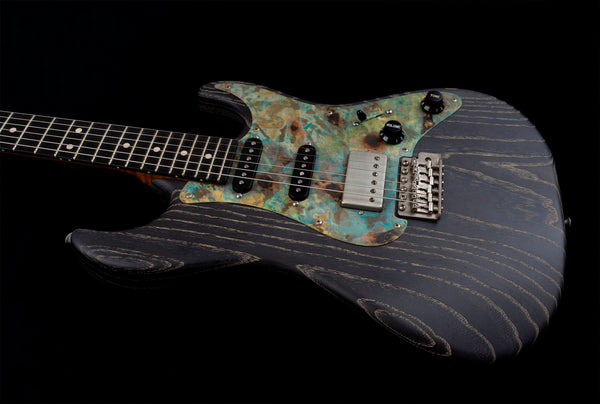

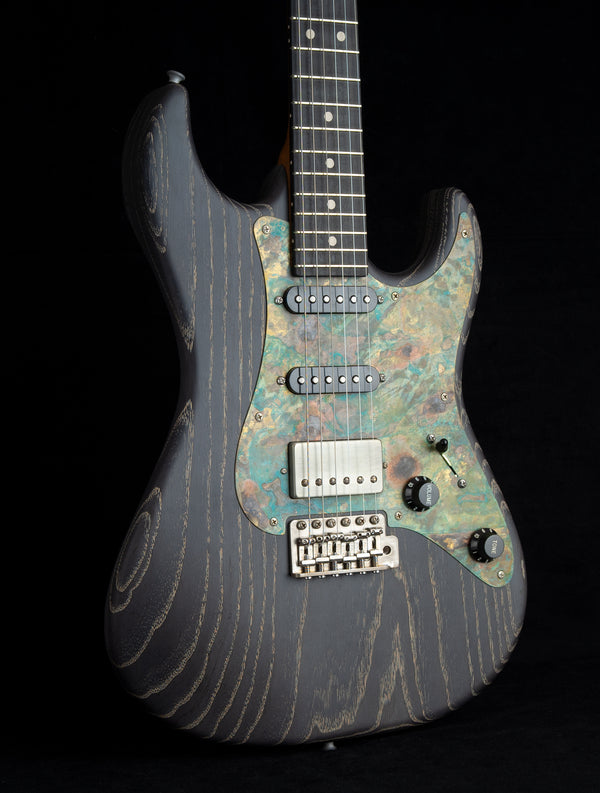

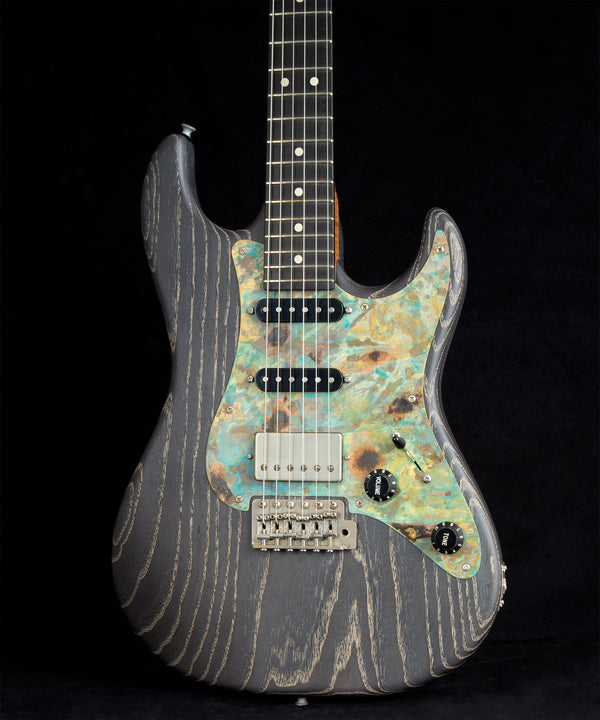

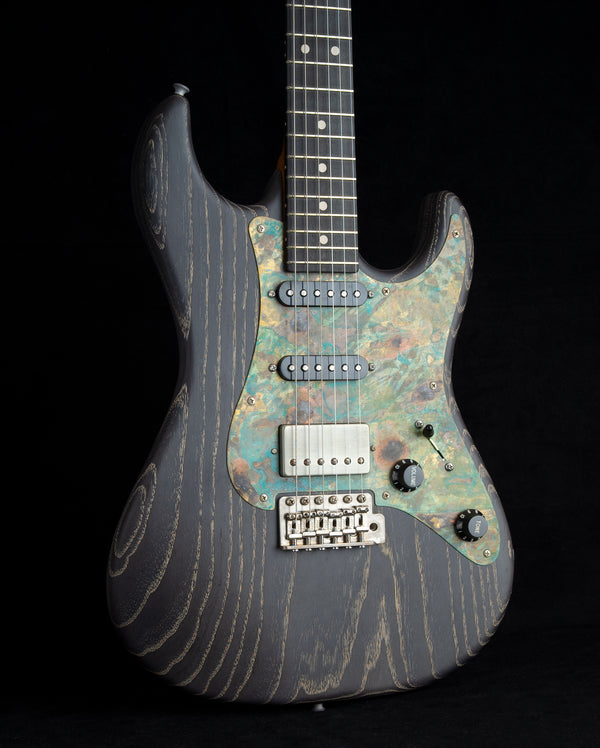

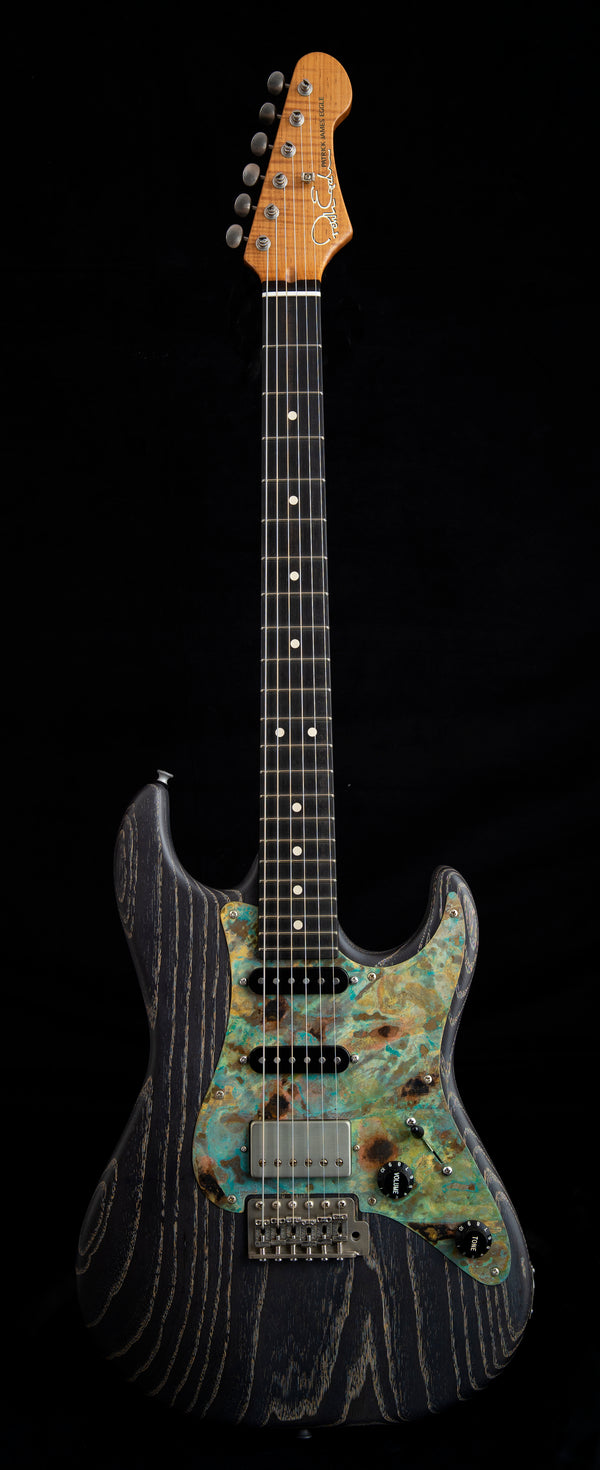

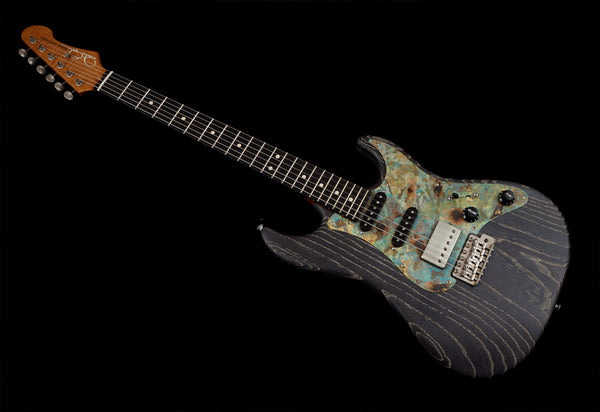

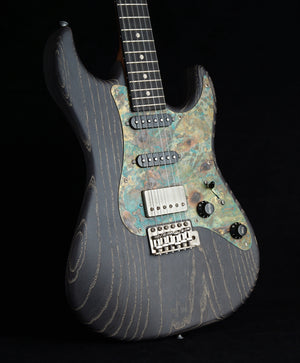

Patrick James Eggle The 96 Vintage
Shipping calculated at checkout
Pickup currently unavailable
MATERIALS
BODY: Swamp Ash
NECK: Roasted Figured Maple
FRETBOARD: Ebony
INLAYS: Ivory

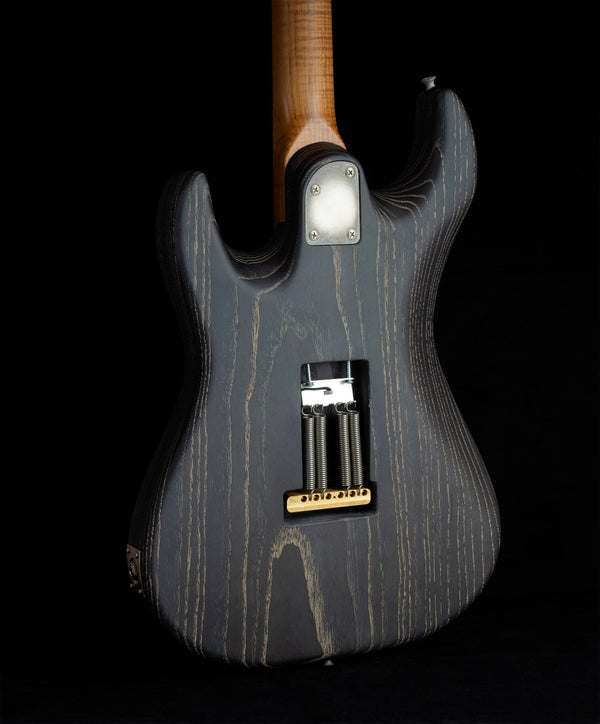

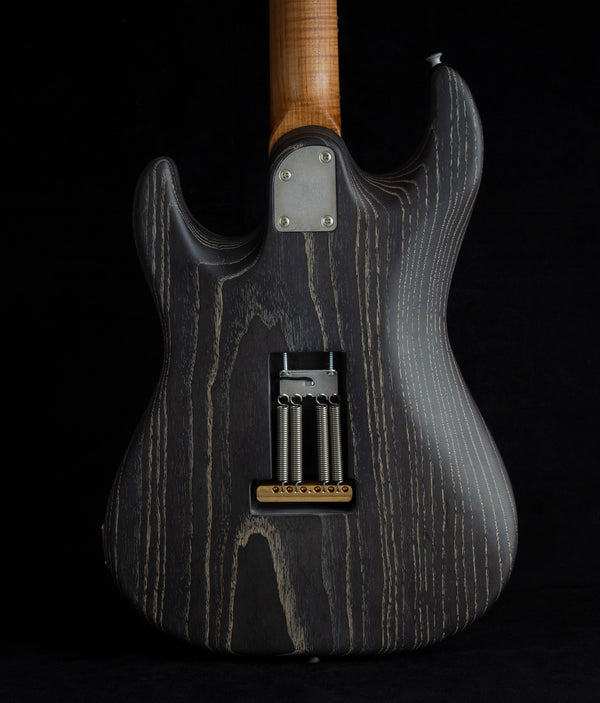

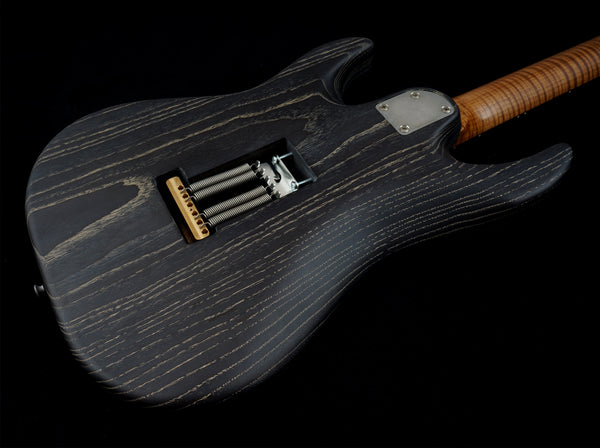

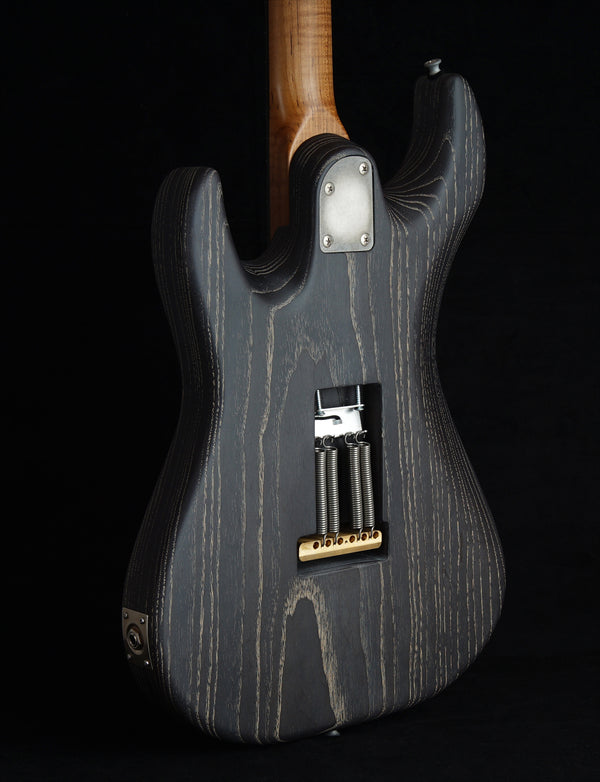

TREMOLO: ABM 5050-S - Vintage Tremolo w/ Brass Block
SADDLES: Vintage Correct Steel Saddles
NUT: White Tusq

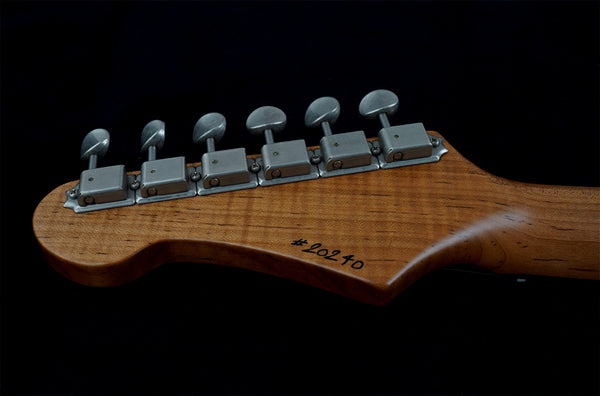

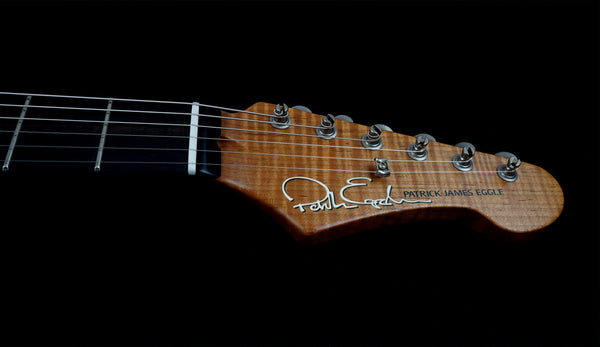

TUNING MACHINES: Gotoh SD91

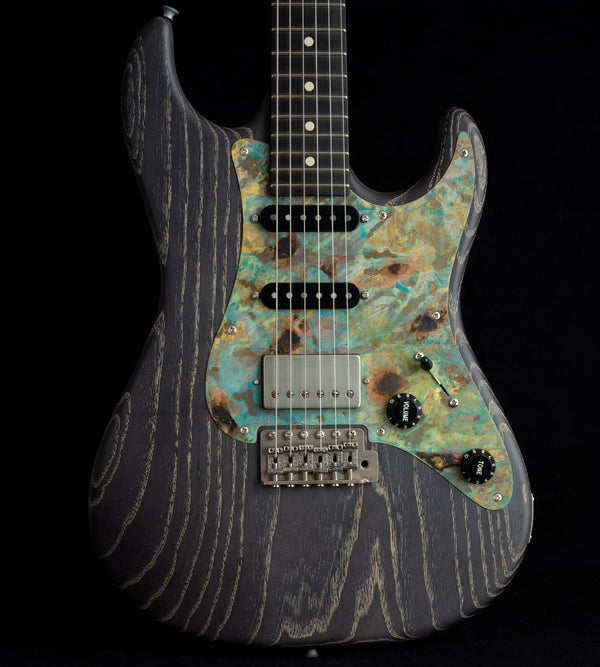

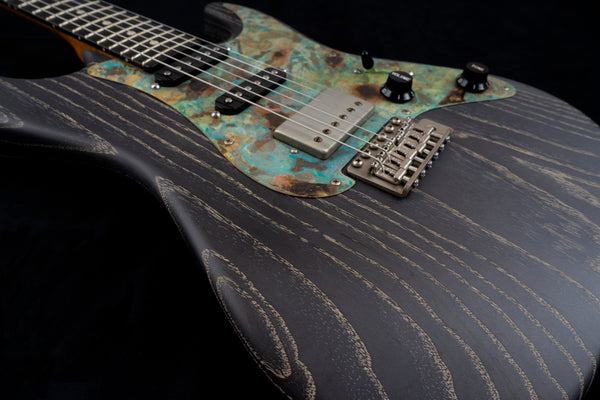

PICKGUARD: Hand Patinated Brass
NECK PICKUP: Mojo - Single Coil
MIDDLE PICKUP: Mojo - Single Coil
BRIDGE PICKUP: Mojo - Humbucker
CONTROLS: Master Volume, Master Tone with push-pull coil tap, 5/3 Way Selector Switch, NOS Paper in Oil capictors
HARDWARE FINISH IS HAND AGED NICKEL AND TUMBLE AGED ALUMINIUM
DIMENSIONS
BODY LENGTH: 17.5" - 445mm
BODY WIDTH: 12.5" - 318mm
BODY DEPTH: 1.75" - 45mm
SCALE LENGTH: 25.5" - 648mm
STRING SPACING AT BRIDGE: 2.09" - 53mm
WEIGHT: 7.40 lbs - 3.35 kg
NECK
NUT WIDTH: 1.69" - 42.8mm
DEPTH AT 1ST FRET: 0.87" - 22.2mm
DEPTH AT 12TH FRET: 0.91" - 23mm
FRETBOARD RADIUS: 12"
NECK PROFILE: 'Soft V'FRETWIRE: Jescar 55090 - Medium Tall
CASE

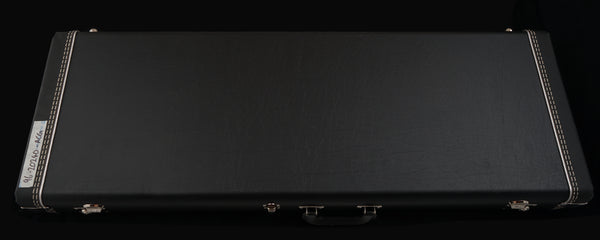

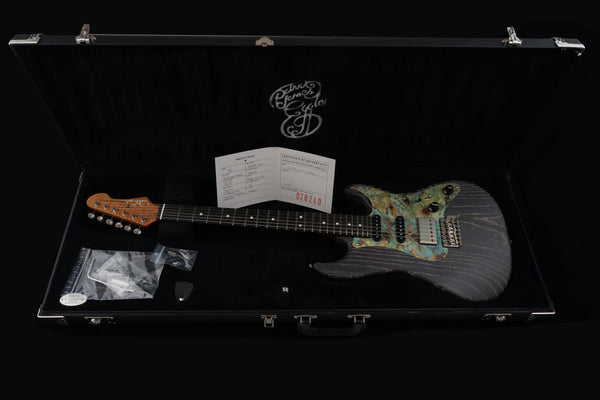

G&G Patrick James Eggle Deluxe Hardshell Case
